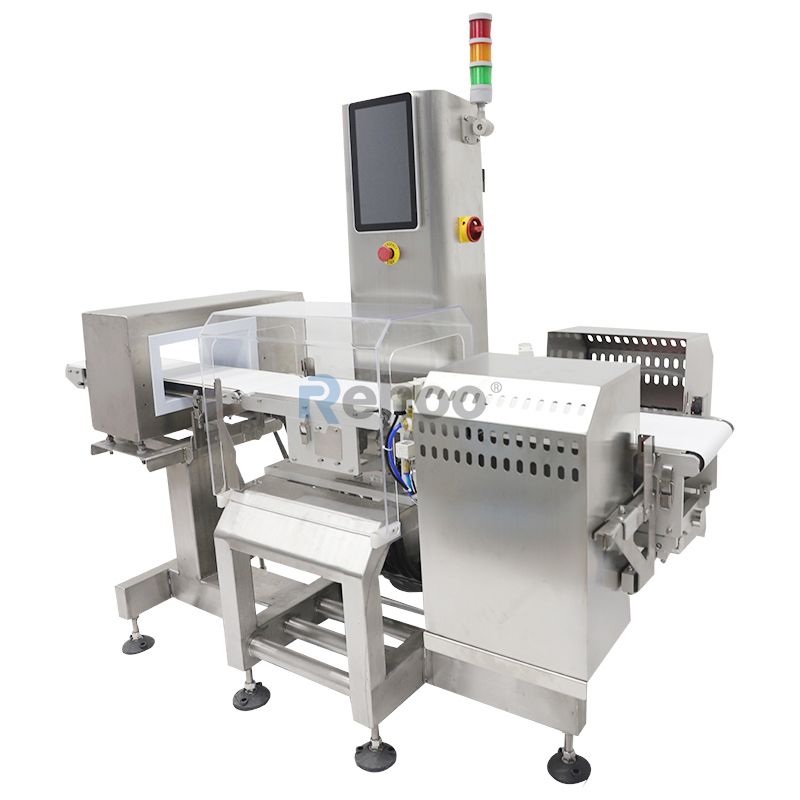

Metal Detector & Check Weigher Combo Machine

MDC-COMBO II

Applied for packaged food, dairy chemical, pharmacy industrial

Features
Spesifications

Features

All in one stainless steel frame
Equipped with precise load cell and high speed DSP technology
Dynamic weighing compensation and zero tracking
40 product memory, Easy to edit and save
Fast preset shift, Automatic product study
Directly Log output to USB flash disk
10 inch touch screen and friendly operation interface
Multi-language optional
Peripheral device connectable
Rejector type optional

Specifications

Model

Detection/Weighing Principle

Sensitivity of Metal Detector

Window Size(W*H)

Available Tunnel Size (W*H)

Weighing Accuracy

Weighing Range

Weight of Calibration

Weight Resolution

Belt Speed

Product Speed

Product Size Range

Dimension of Weighing Platform(L*W)

Type of Loadcell

Type of Conveyor Belt

Type of Rejector

Type of Keypad

Alarm Type

Weighing Range

Menu Content(Rejection Mode)

Level of protection

Frame Material and Surface

Machine Dimension(LWH)

Height of Conveyor Surface

Net Weight

Power Supply

Rated Power

Optional Parts

MDC-Combo II

Electric Induction/Strain Transducer

(Lo Freq.) FE1.0-SUS2.5 (Hi Freq.) FE1.0-SUS2.0

300*150mm

230*110mm

± 0.2g

3～1000g

1000g

0.1g

20～80m/min

Maximum 130pcs/min

L:30~300mm W:30~230mm H:10~110mm

440mm*230mm

Strain Transducer

Flat belt(Width: 230mm）

Air Blast, Flap, Pusher

Touch Screen

Lamp tower, Buzzer

Nominal:
Numeral Keypad Input: 0.1g~1100.0g (Nominal +Upper Limit, 0.1g Interval)

Speed:
Belt Speed Set Range: 20~80m/min(Upper Limit due to Product Length)

Totally 40 Products Preset Include; Product Name, Product Length, Belt Speed, Nominal Weight, Upper Limit, Down Limit, Rejection Timer……

Metal Detector & Check Weigher Combo Machine

Features

Specifications

Model

Detection/Weighing Principle

Sensitivity of Metal Detector

Window Size(W*H)

Available Tunnel Size (W*H)

Weighing Accuracy

Weighing Range

Weight of Calibration

Weight Resolution

Belt Speed

Product Speed

Product Size Range

Dimension of Weighing Platform(L*W)

Type of Loadcell

Type of Conveyor Belt

Type of Rejector

Type of Keypad

Alarm Type

Weighing Range

Menu Content(Rejection Mode)

Level of protection

Frame Material and Surface

Machine Dimension(L*W*H)

Height of Conveyor Surface

Net Weight

Power Supply

Rated Power

Optional Parts

MDC-Combo II

Electric Induction/Strain Transducer

(Lo Freq.) FE1.0-SUS2.5 (Hi Freq.) FE1.0-SUS2.0

300*150mm

230*110mm

± 0.2g

3～1000g

1000g

0.1g

20～80m/min

Maximum 130pcs/min

L:30~300mm W:30~230mm H:10~110mm

440mm*230mm

Strain Transducer

Flat belt(Width: 230mm）

Air Blast, Flap, Pusher

Touch Screen

Lamp tower, Buzzer

Nominal: Numeral Keypad Input: 0.1g~1100.0g (Nominal +Upper Limit, 0.1g Interval)

Speed: Belt Speed Set Range: 20~80m/min(Upper Limit due to Product Length)

Totally 40 Products Preset Include; Product Name, Product Length, Belt Speed, Nominal Weight, Upper Limit, Down Limit, Rejection Timer……

IP-20

SUS304 Brushed, Mirror and Blasting

1940mm*700mm*1330+100mm(Waste Bin Excluded)

750+100mm

215kg(Wind Shield and Waste Bin Excluded)

AC200V~240V;50/60Hz (Single Phase)

350W

Wind Shield (Transparent)

Machine Dimension(LWH)

Nominal:
Numeral Keypad Input: 0.1g~1100.0g (Nominal +Upper Limit, 0.1g Interval)

Speed:
Belt Speed Set Range: 20~80m/min(Upper Limit due to Product Length)

1940mm700mm1330+100mm(Waste Bin Excluded)
